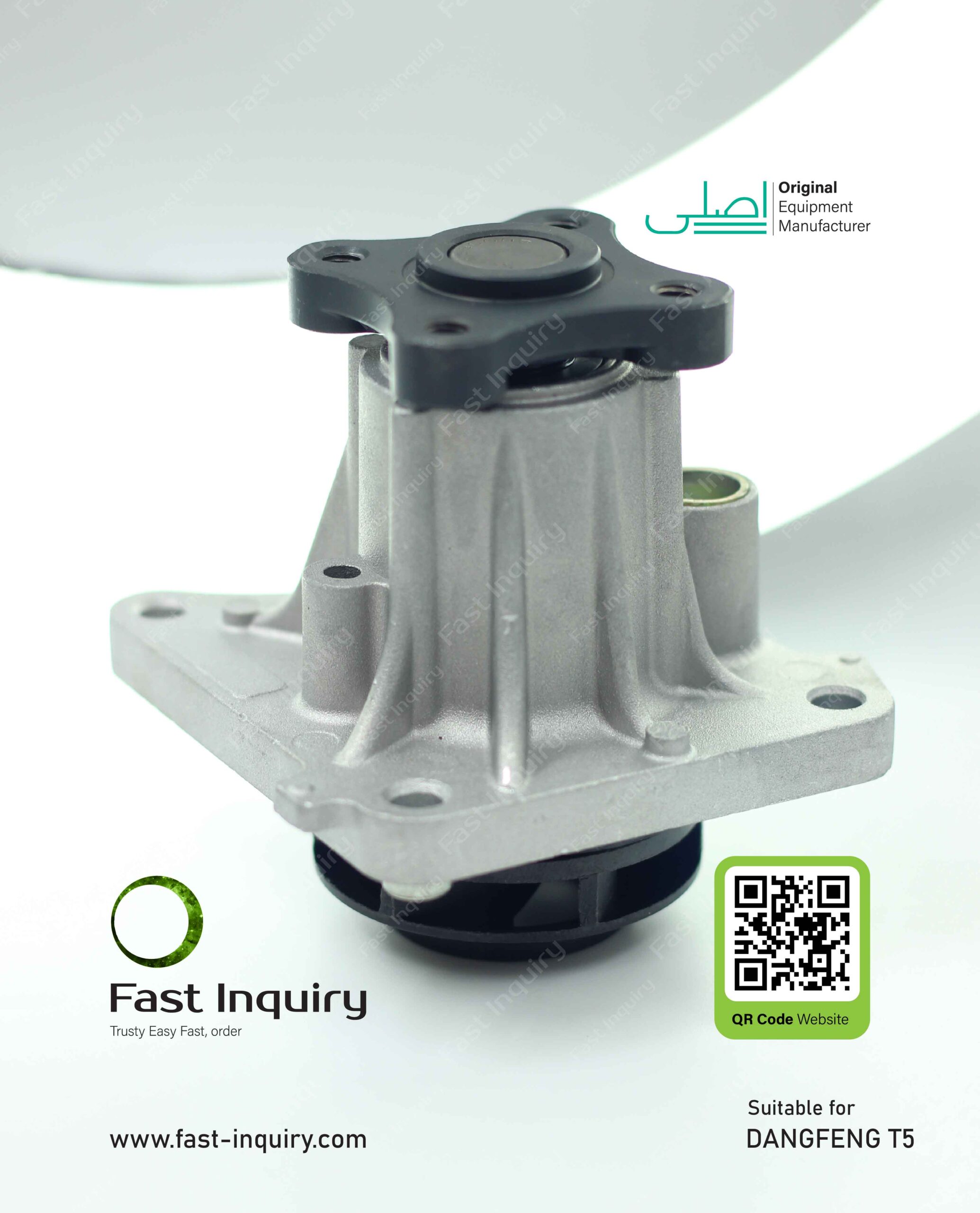

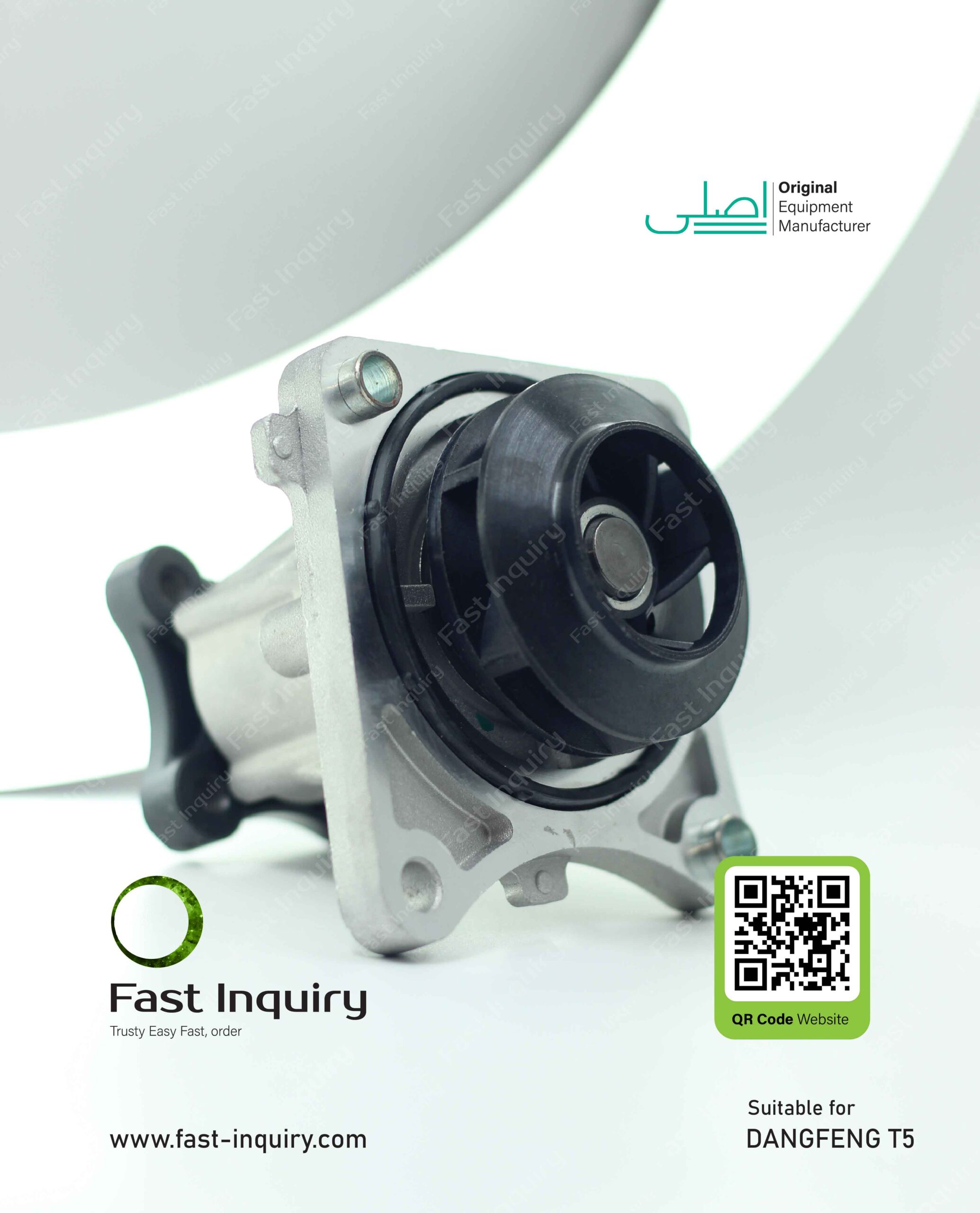

DONGFENG FORTHING T5 EVO & M4 ENGINE WATER PUMP

• The engine water pump is a critical component of your vehicle's cooling system. Its primary function is to continuously circulate coolant between the engine block and the radiator, preventing overheating and maintaining the engine at its ideal operating temperature. Without a properly functioning water pump, excessive heat buildup can cause severe and costly engine damage.

  Our high-quality engine water pump is engineered to meet or exceed OEM specifications, delivering consistent coolant flow, quiet operation, and long service life — whether in passenger vehicles, commercial trucks, or high-performance applications.

  Specifications

  Housing Material	Die-cast aluminum alloy (ADC12)
  Impeller Material	Cast iron / Stainless steel (application-specific)
  Seal Type	Ceramic mechanical seal with rubber bellows
  Bearing Type	Double-row ball bearing, double-sealed
  Max Operating Temperature	130°C (266°F)
  Max Coolant Pressure	200 kPa (29 PSI)
  Flow Rate (at rated RPM)	Up to 120 L/min (application-dependent)
  Drive Type	Belt-driven / Timing belt (OEM-matched)
  Gasket Included	Yes – pre-cut fiber/rubber gasket or O-ring
  Finish	Corrosion-resistant coating / Powder-coated
  Warranty	24 months / 50,000 km (whichever comes first)
  Standards	ISO 9001 certified manufacturing

  Why Choose Our Water Pump

  • Prevents engine overheating, protecting against costly head gasket failures and engine damage
  • Direct-fit replacement — no modifications required for supported vehicle applications
  • Reduced noise and vibration compared to worn or budget-grade alternatives
  • Compatible with all standard coolant types including OAT, HOAT, and conventional green coolant
  • Extended service life reduces total cost of ownership over the vehicle's lifespan
  • Environmentally responsible manufacturing with RoHS-compliant materials.



• Installation Notes

  For best results, replace the engine water pump during routine timing belt or timing chain service intervals. Always flush and refill the cooling system with fresh coolant at the time of installation. Torque all mounting bolts to the manufacturer's specified values to ensure proper sealing and alignment.

  Professional installation is recommended. Consult the vehicle's service manual or contact our technical support team for application-specific installation guidance and torque specifications.
